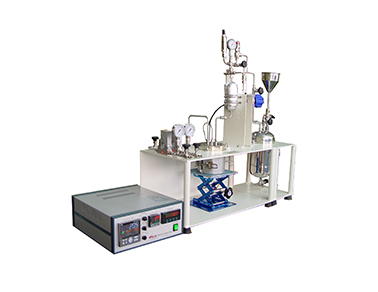

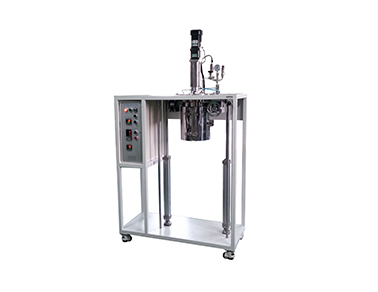

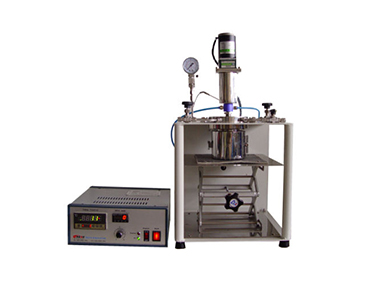

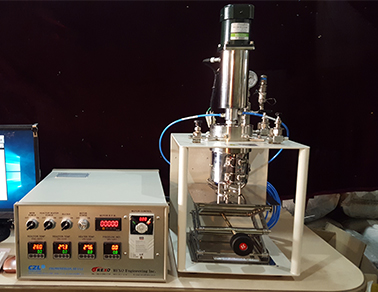

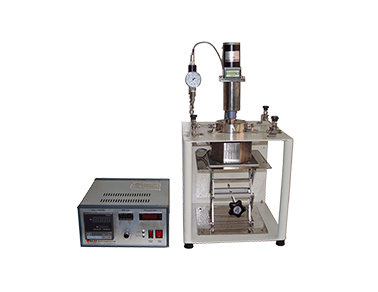

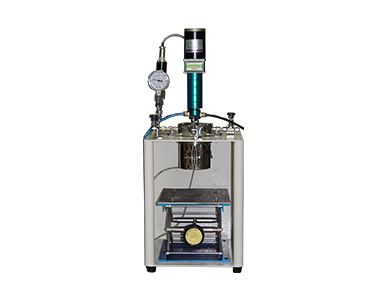

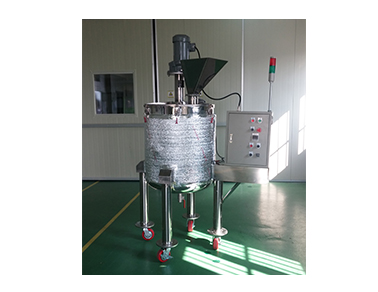

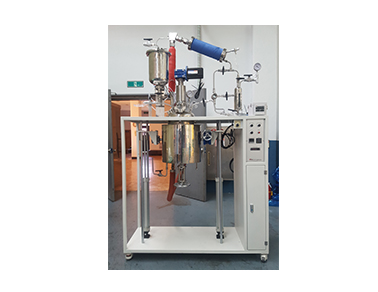

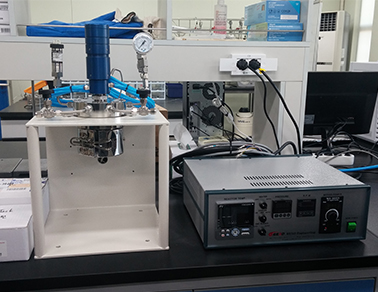

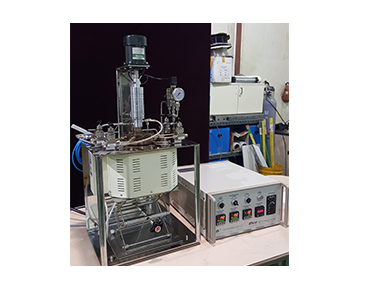

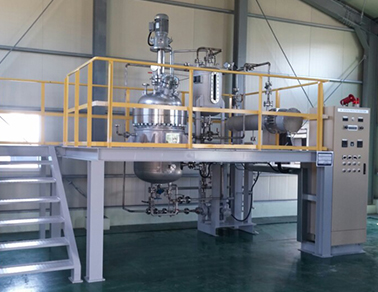

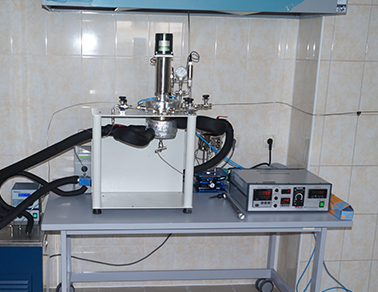

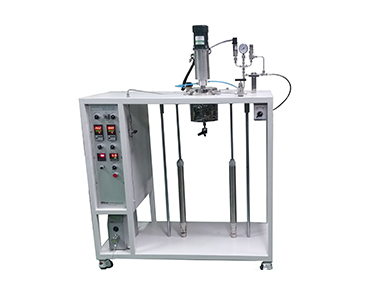

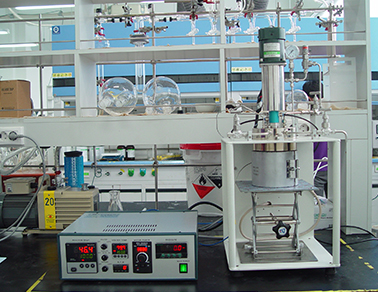

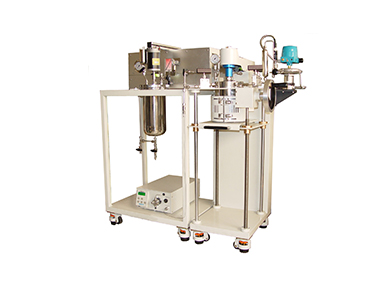

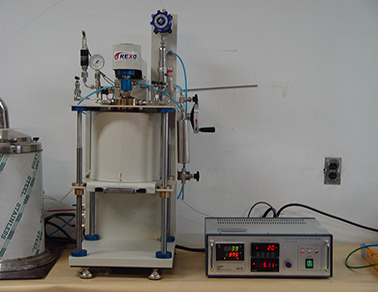

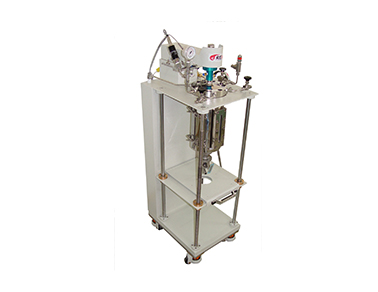

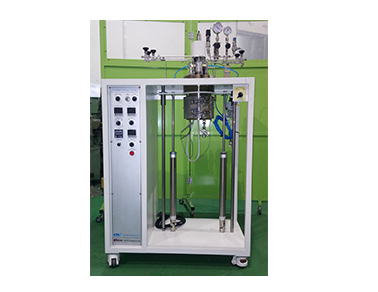

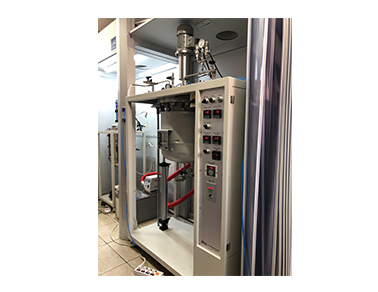

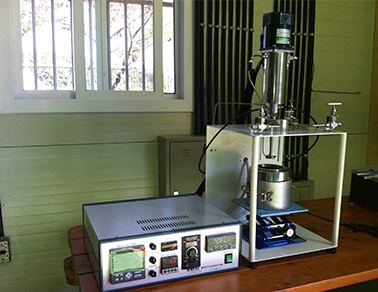

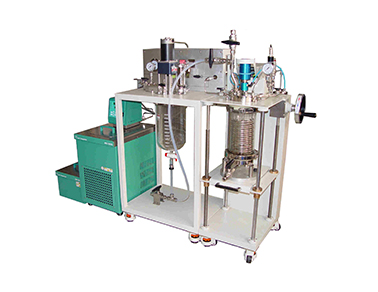

M-Series Reactor System
The M-Series reactor system is a series of reactors that include a batch reactor.
Process composition is relatively simpler than other series and the advantage is that large capacity can be manufactured even at a relatively low cost.
This system is used in the area of hydrothermal reaction, polymerization, hydrogenation reaction, high pressure annealing, catalytic reaction, supercritical oxidation and extraction.
용량 | 50ml ~ 1000 L |
---|---|
재질 | STS304, 316, Ti, Hastelloy, Inconel, Monel, Glass and etc |
설계 압력 | vacuum - 400 bar |
설계 온도 | -60℃ ~ 400℃ |
가열 방식 | electric heater (band, ceramic, ceramic fiber), heat medium and refrigerant circulation |
제어 방식 | panel control (CS-1000), program control (CS-2000) |
교반 방식 | Alternation type magnetic drive, mechanical seal, magnetic bar |
